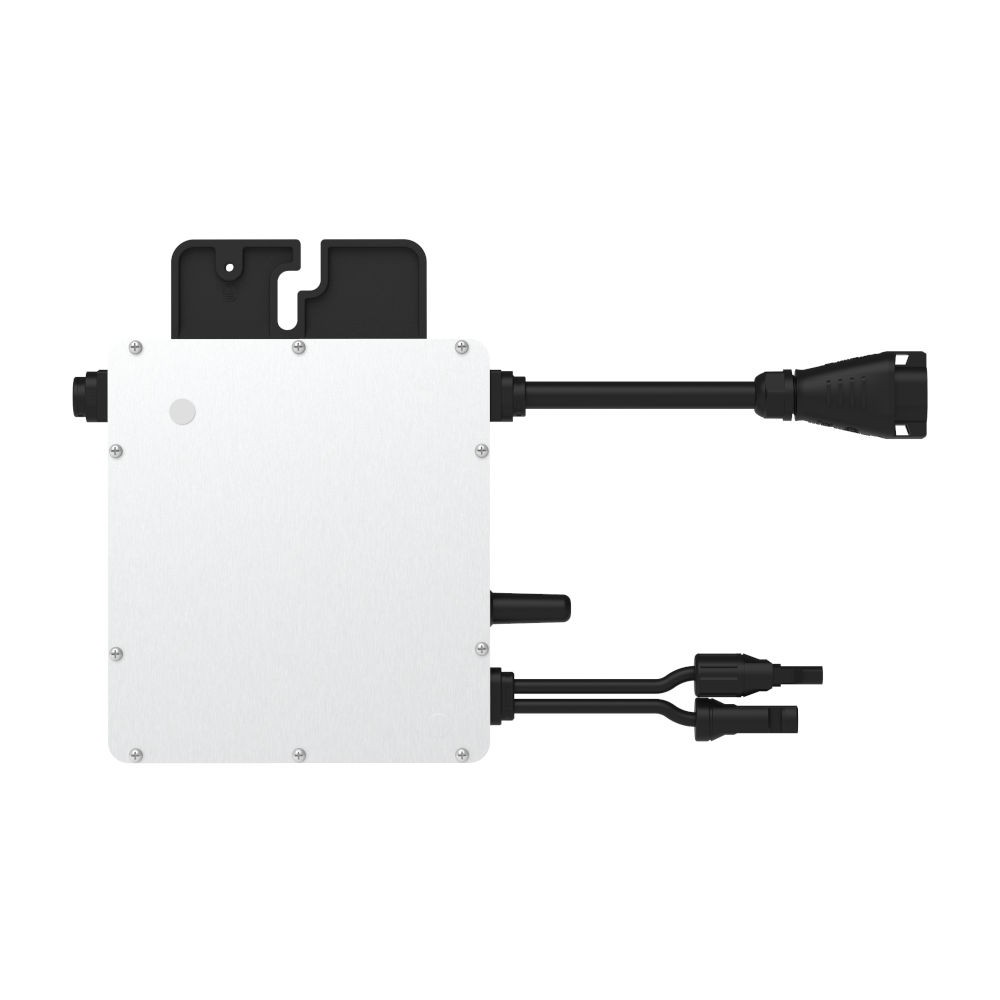

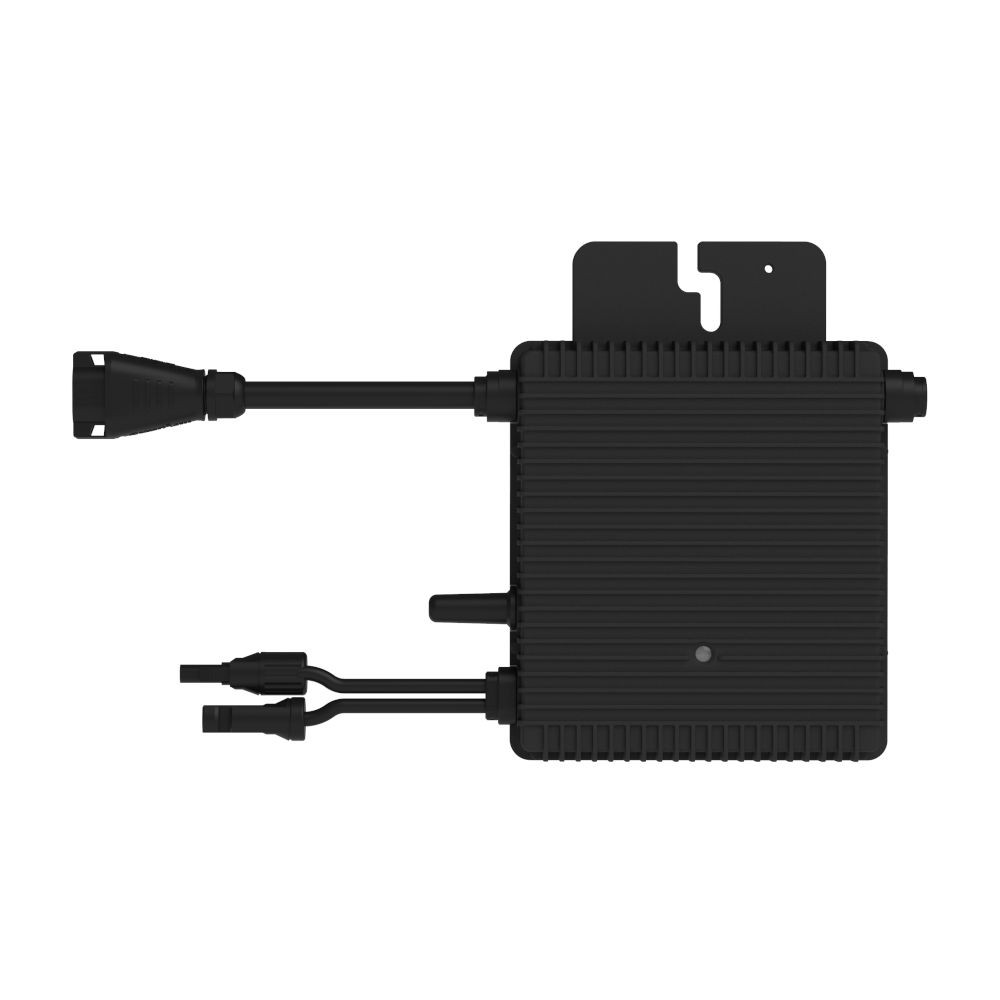

Hoymiles HMS-500-1T Photovoltaic microinverter

Product information "Hoymiles HMS-500-1T Photovoltaic microinverter"
With up to 500 VA output power, the new Hoymiles HMS-500-1T microinverter ranks high and strong among the best inverters operating 1:1 with photovoltaic modules. Each 1T microinverter has one MPPT input with the ability to connect 1 module, which directly affects its efficient operation, maintaining maximum performance in all weather conditions. The microinverters and thus the photovoltaic modules are monitored independently by the Hoymiles monitoring system via Sub-1G transmission.

IMPORTANT! A Hoymiles monitoring module must be selected for each installation consisting of Hoymiles microinverters.

Product’s distinguishing characteristics:

Highest-powered microinverter for 1 in 1 with output power up to 500 VA
With Reactive Power Control, meets the requirements of EN50549-1:2019, VDE-AR-N 4105:2018, UL1741, etc.
Safer for rooftop solar stations with rapid shutdown compliant and isolated transformer
Excellent flexibility, faster installation and good adaptability to all kinds of module arrangement
Sub-1G wireless solution enables the stable communication when installed for commercial and industrial stations

General features:
Type: Microinwerter
Communication type: Sub-1G
Weight [kg]: 1.75
Dimensions [mm]: 182 x 164 x 30
DC parameters:
Maximum PV power [W]: 670
Max. voltage [V]: 65
Min. MPPT voltage [V]: 16
Max. MPPT voltage [V]: 60
Initial feed-in voltage [V]: 22
Number of MPPT inputs: 1
Maximum current per one MPPT [A]: 14
Supported number of PV modules: 1
AC parameters:
Power [W]: 500
Feed-in phases: 1
Max. output current [A]: 2.17
Efficeincy:
Max. efficiency [%]: 99.8
