Prece var atšķirties no attēlā parādītās. Attēlā var būt parādītas detaļas, kuras neietilpst piegādes komplektā.
Tehniskie raksturojumi
Apraksts

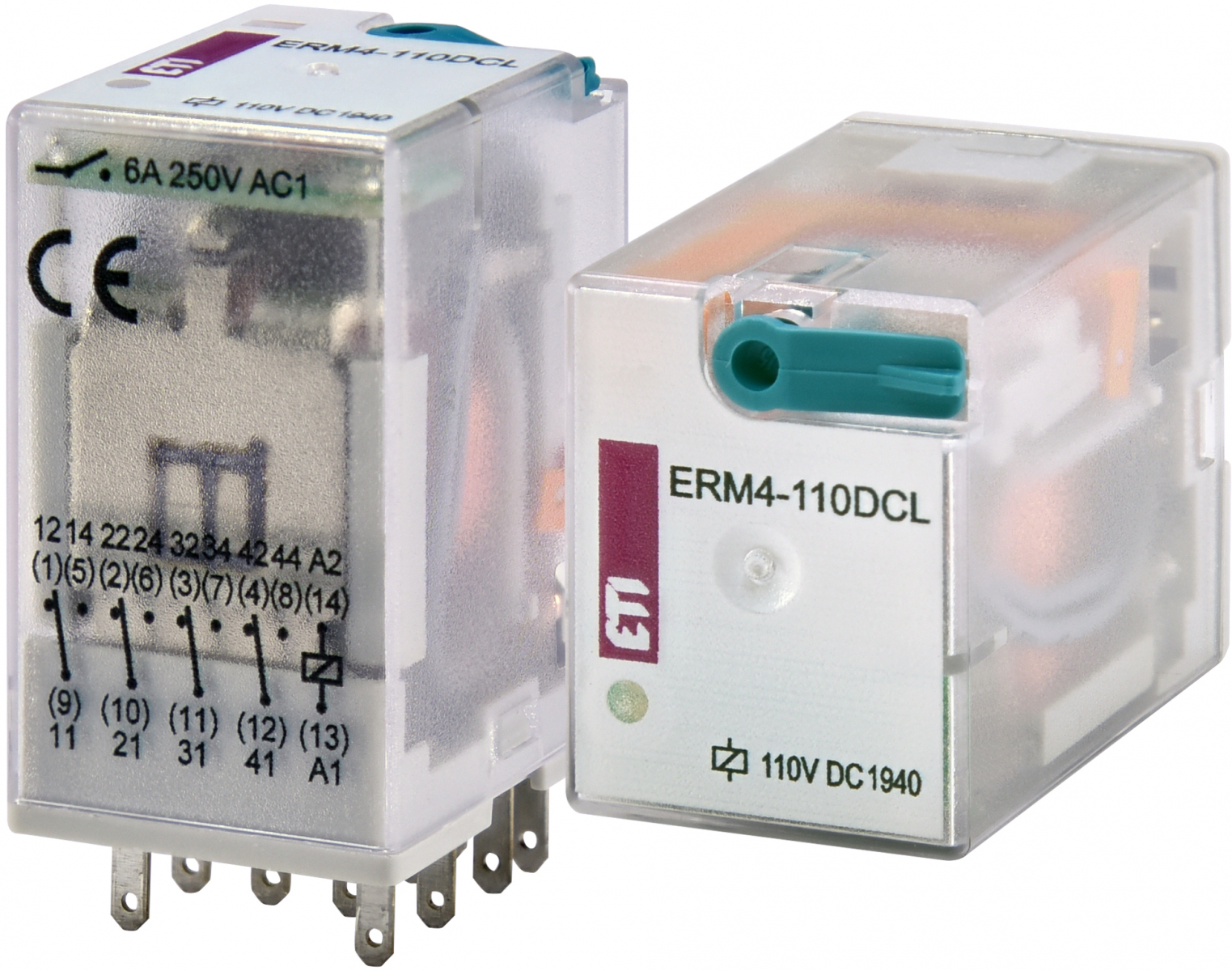

Relay, ERM4-110DCL, Function Industrial plugin electromagnetic relays, No. of CO contacts 4, Rated current (A) 6, Switching voltage (V) 250, Uc rated coil voltage (V) 110, Voltage type DC, Type of electric connection Plug-in connection , With detachable clamps , Nominal current A, Rated control supply voltage AC 50 Hz V, Rated control supply voltage AC 60 Hz V, Rated control supply voltage DC 110…110 V, Voltage type for actuating DC , Drive, polarization , Drive, switching attitude Mono stable , Number of contacts as normally closed contact , Number of contacts as normally open contact , Number of contacts as change-over contact 4 , With forced-guided contacts , Type of switch contact , Complete with socket False , With LED indication , Degree of protection (IP) IP40 , Width 21.2 mm, Height 27.5 mm, Depth 35.6 mm
