iStoragE B5-S1 Kehua Battery Module

Product information "iStoragE B5-S1 Kehua Battery Module"

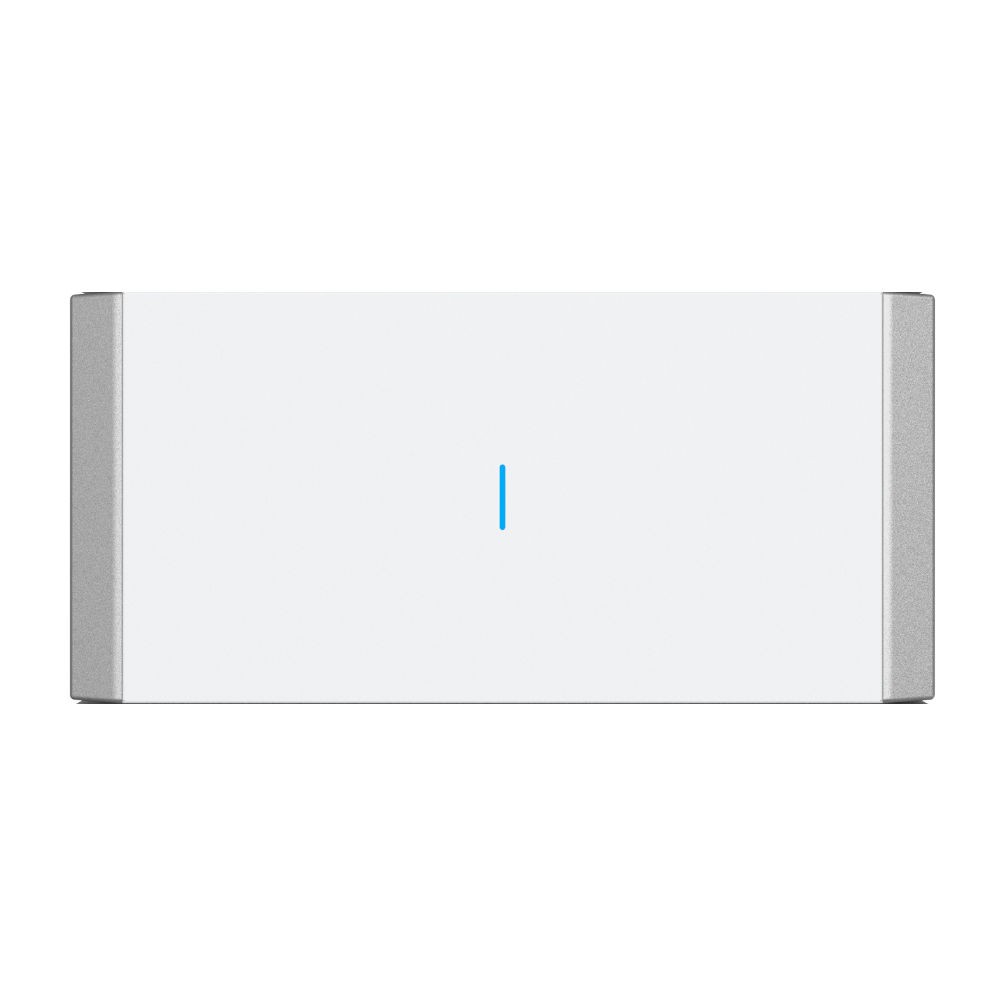

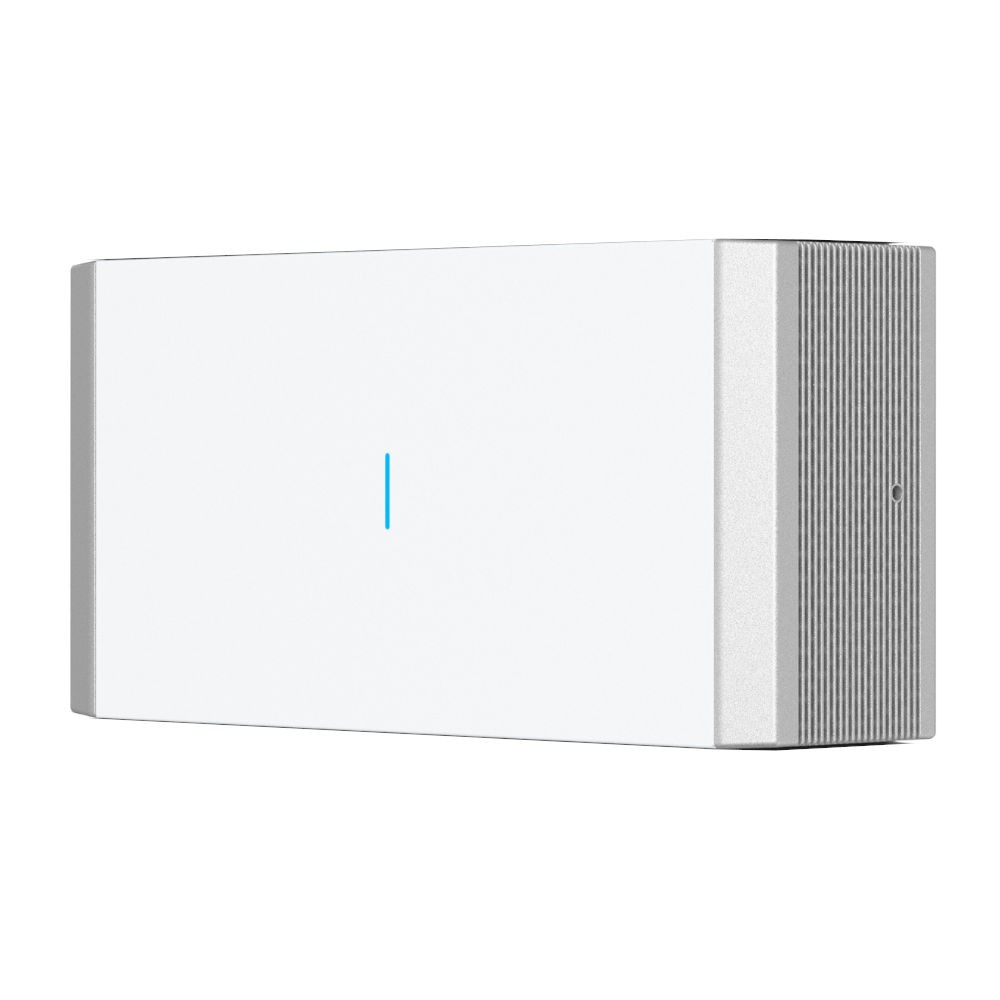

The iStoragE B5-S1 battery module is used to build the iStoragE1 energy bank. The module is made in the LiFePO4 technology with a utility capacity of 5 kWh. It works with a dedicated iStoragE1 hybrid inverter in the 3.6 - 6 kW power range.

The iStoragE1 energy storage can hold and release electricity depending on the requirements of the management system. The entire set constitutes an integrated element with the possibility of being extended up to 8 battery modules and a utility capacity of 40 kWh.

The product's distinctive features:

Easy assembly into the iStoragE1 storage system
Quick launch, full automation
LiFePO4 battery technology
Energy consumption automation at the level of the module
Scalable to 40 kWh
NOTICE! This battery module works with the iStoragE1 and iStoragE3 hybrid inverter

eneral features:
DoD depth of discharge [%]: 100
Battery Scalability: do 8 jednostek
Battery technology: LFP
Communication type: RS485, CAN
Weight [kg]: 55
Dimensions [mm]: 380 x 800 x 200
Electrical characteristics:
Maximum continuous charging current [A]: 11.11
Nominal battery voltage [V]: 380
Peak discharge current (10 sec) [A]: 13.33
Usable capacity [kWh]: 5
Battery Voltage Range [V]: 360-500
Maximum continuous discharge current [A]: 11.11
