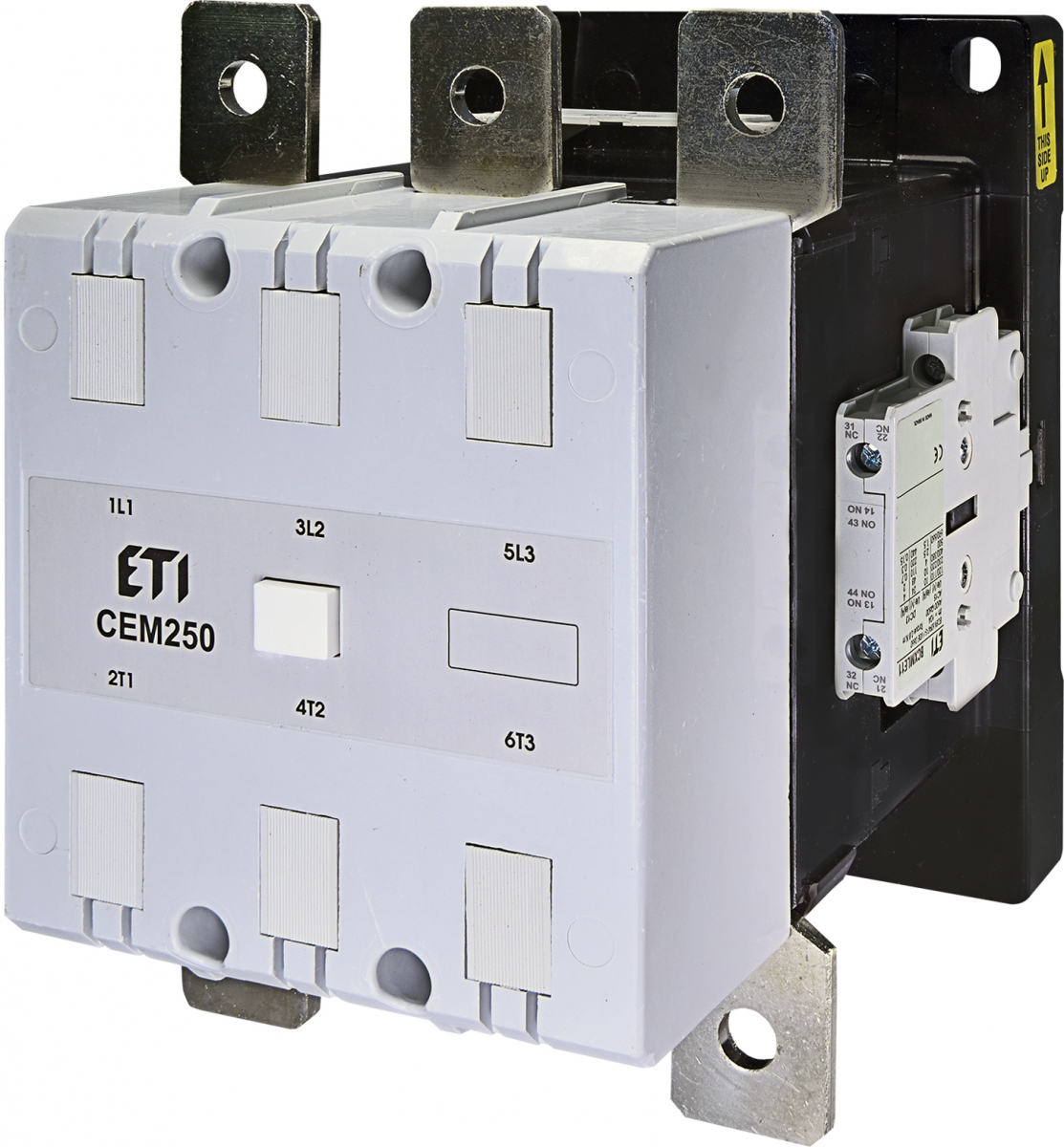

CEM250.22-230V-50/60Hz Palīgkontaktors 132kW + 2NO + 2NC

Motor contactor, CEM250.22-230V-50/ 60Hz, No. of aux NO contacts 2, Catalogue Group CEM Motor contactor, No. Of poles 3, AC rated control supply voltage Uc (V) 230, No. of aux NC contacts 2, Rated operation power at AC3 (kW) 132, Rated operation current Ie at AC1 (A) 350, Rated operation current Ie at AC3, 400V (A) 250, Function Motor contactor, Rated operational voltage (V AC) 1000, Rated control circuit voltage Uc (V AC) 230, Rated control supply voltage AC 50 Hz 230…230 V, Rated control supply voltage AC 60 Hz 230…230 V, Rated control supply voltage DC 230 V, Voltage type for actuating AC , Rated operation current Ie at AC-1, 400 V 350 A, Rated operation current Ie at AC-3, 400 V 250 A, Rated operation power at AC-3, 400 V 132 kW, Rated operation current Ie at AC-4, 400 V A, Rated operation power at AC-4, 400 V kW, Rated operation power NEMA kW, Modular version False , Number of auxiliary contacts as normally open contact 2 , Number of auxiliary contacts as normally closed contact 2 , Type of electrical connection of main circuit Rail connection , Number of normally closed contacts as main contact , Number of normally open contacts as main contact 3
