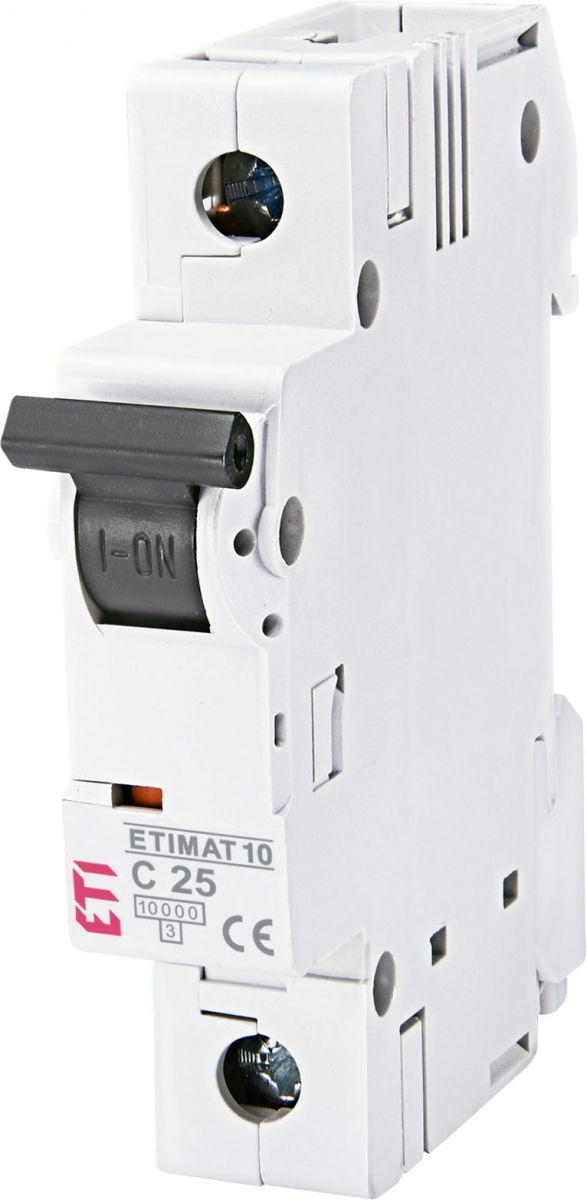

ETIMAT 10 1p C25 Automātiskais slēdzis 1P C25A - 10kA

Miniature circuit breaker, ETIMAT 10 1p C25, Short circuit capacity (kA) 10, Tripping characteristic C, Function MCB, Terminals (mm2) 1-25, Rated Frequency (Hz) 50/ 60, Standards IEC/ EN 60898-1, IEC 60947-2, Rated impulse withstand voltage Uimp (kV) 6, Rated voltage (V) 230/ 400, No. Of poles 1, Voltage type AC, Rated current (A) 25, Release characteristic C , Number of poles (total) 1 , Number of protected poles 1 , Rated current 25 A, Rated voltage 230/ 400 V, Rated insulation voltage Ui 500 V, Rated impulse withstand voltage Uimp kV, Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 10 kA, Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V 10 kA, Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V 15 kA, Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V 15 kA, Voltage type Other , Type of drive 50…60 Hz, Current limiting class 3 , Suitable for flush-mounted installation , Concurrently switching neutral conductor , Over voltage category 3 , Pollution degree 3 , Additional equipment possible True , Width in number of modular spacings 1 , Built-in depth 68 mm, Degree of protection (IP) IP20 , Ambient temperature during operating -25…55 °C, Connectable conductor cross section multi-wired 1…25 mm², Connectable conductor cross section solid-core 1…25 mm²
