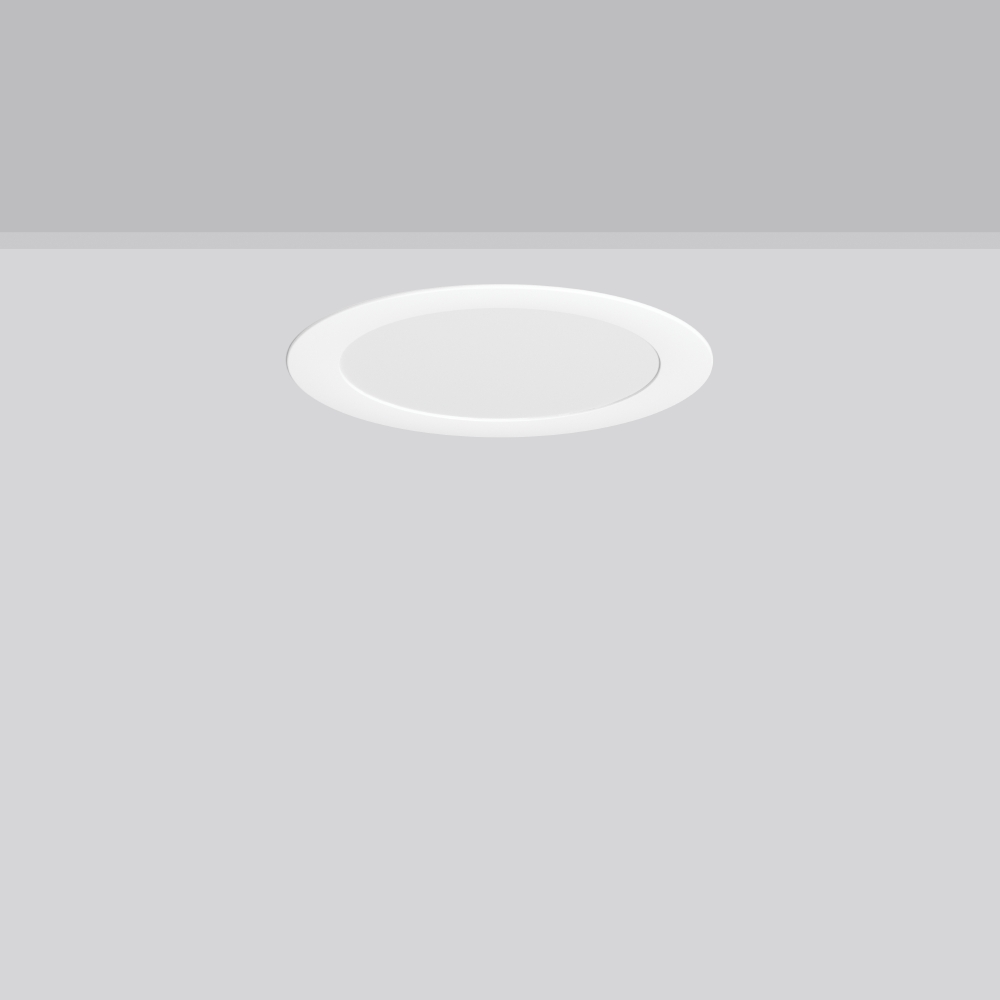

Gaismeklis Toledo Flat Round LED 17W,1800 lm,840, white, on/off 110°,D-255mm,H-3mm,HEL 31-51, IP40

Prece var atšķirties no attēlā parādītās. Attēlā var būt parādītas detaļas, kuras neietilpst piegādes komplektā.

Gaismeklis Toledo Flat Round LED 17W,1800 lm,840, white, on/off 110°,D-255mm,H-3mm,HEL 31-51, IP40

Preces kods: 901453.002.1

EAN kods: 4051859051459

Ražotājs: RZB

Grupa: Prožektori/akcenta prožektori

VIENĪGI PASŪTĪŠANAI

Piegādes laiks, ja prece nav noliktavā: Pēc pieprasījuma

Spec.dokumenti:

Tehniskie raksturojumi

Jauda:

17 W

Gaismas plūsma:

1800 Lm

Gaismas krāsu temperatūra:

4000 K

IP aizsardzība:

IP54 on room side IP20

Gaismekļa Vadība:

on/off

Krāsa:

balts

Sērija:

TOLEDO FLAT round

Apraksts

Series: TOLEDO FLAT round Ultra thin recessed LED downlight. Housing: die-cast aluminium. Light guide and diffuser made of non-yellowing PMMA, opal matt. Can be directly covered with thermal insulation material. Ceiling installation with spring system. Mounting depth depends on ceiling strength. Including separate LED converter with connecting cable 250 mm. Suitable for through-wiring with separately available accessories.Surface mounted housing as accessory for all sizes. Retrofittable decorative cylinders made of chintz fabric as accessory, optional with satin finish plastic diffuser. Through-wiring box (5 pole) available as accessory. Colour: white Diameter: 255 mm Height: 3 mm Cut-out diameter: 234 mm Recess height: 30-56 mm Luminaire: recess height: 31-51 mm
